SS Intelligent Weighing Technology Scales 24VDC 6W Loadcell Transmitter

Name: SS Intelligent Weighing Technology Scales 24VDC 6W Loadcell Transmitter
Brand: Linmindu
Price: 1 USD

Quality SS Intelligent Weighing Technology Scales 24VDC 6W Loadcell Transmitter for sale

Display Division : 100000

Product : Ordinary weighing instrument

Installation Method : Rail-mounted installation

Model Number : LM550D

Supply Ability : 1,000 units per month

Payment Terms : Payment before delivery

Rate : A/D rate 120Hz

Brand Name : Linmindu

Place of Origin : China

Delivery Time : 20 days

Protection Level : IP54

Material : All stainless steel

Packaging Details : carton packaging

Contact Now

LM550D weighing transmitter with stable signal and high accuracy, used for signal conversion and transmission in industrial weighing and batching systems.

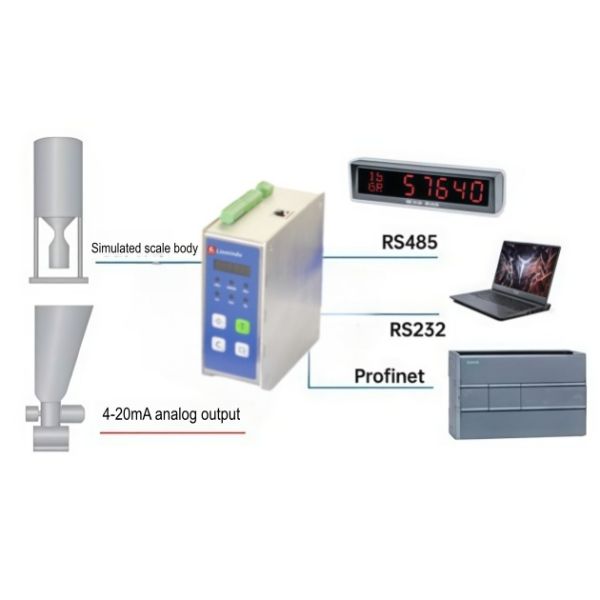

The LM550D series universal weighing terminal has various basic control functions required for industrial weighing applications, and can convert weighing signals into various standard industrial communication signals in real time, realizing the integration of on-site display and remote transmission. This instrument is widely used in industrial fields such as metallurgy, chemical industry, rubber, pharmaceutical, tobacco, food, feed, material analysis, etc. Support weight free calibration function, with multi-level dynamic digital filtering to meet various high-speed weighing needs, strong anti vibration and anti-interference ability, suitable for various complex production environments.

Product Features

6-digit, green, 0.25-inch digital display
Supports 1 analog scale platform access, up to 8 sensors
Maximum display division of 100000
Standard configuration includes 1 RS232 and 1 RS485
Serial ports are equipped with isolation protection and lightning protection
Multiple calibration modes
- Multi point calibration (supports up to 5 points)
- Weight free calibration
- Calibration via MODBUS-RTU remote protocol (only supports 2-point calibration)
Working power supply: DC 24VDC, power less than 6W

Specifications

Project	Parameters
Overall Dimensions	Length x Width x Height: 128 x 54 x 130mm
Shell Structure	All stainless steel
Installation Method	Rail-mounted installation
Protection Level	IP54
Keyboard	4 touch buttons
Accuracy Rate	Display division of 100000, A/D rate of 120Hz
Weighing	1 analog signal, up to 8 350 Ω sensors
Working Mode	Comparison of preset points, upper and lower limit alarms, weight control, reduction control, peak force measurement, weighing and canning, etc
